Quinn Angstrom
[math] here's a cool problem that proves something that feels like it would be really hard to prove, or dubious that it's even true at all
Quinn Angstrom
it's called the Borsuk Ulam Theorem
Quinn Angstrom
it's more general, but the specific example I'm using states this:
Quinn Angstrom
there is guaranteed to always be two antipodes on the Earth's surface - two points on exact opposite sides of the world - that have the exact same temperature and air pressure
Quinn Angstrom
now we're making some small assumptions here for simplicity
Quinn Angstrom
1 is that the temperature and air pressure on earth are Continuous - in other words, there's no point where the temperature immediately jumps from hot to cold without some degree of gradient between the two
Quinn Angstrom
2 is that the earth is a sphere. it isn't quite but it's close enough
Quinn Angstrom
so. let's prove that this is the case
Quinn Angstrom
we'll do this by mapping the sphere into something else! we're gonna squish it
Quinn Angstrom
at each point on the sphere, there are two measured numbers - one for temp, one for pressure
Quinn Angstrom
we can use those two values as coordinates
Quinn Angstrom
https://images.plurk.com/6DGuAXpaG9y446UY82N811.png so, each point on the sphere plots onto a point in 2D, based on its temp/pressure
Quinn Angstrom
of course, some places will have the same temp/pressure as others, but we're fine with that. it just means multiple points on the sphere map to the same point on the 2D grid
Quinn Angstrom
we can take this mapping and call it f(p)
Quinn Angstrom
we say, "f(p) = (x,y)"
Quinn Angstrom
which means, "for point p, its coordinates on the mapping plane are x, y"
Quinn Angstrom
p is not a number, it's a 3D vector
Quinn Angstrom
pointing to a place on the sphere, with 0 as the center of the earth
Quinn Angstrom
so, since it's a vector, we can do vector math to it
Quinn Angstrom
specifically if p is one end of an antipode, -p is the other end
Quinn Angstrom
so, we can reframe our original claim in more concrete terms:
Quinn Angstrom
there exists some p such that f(p) = f(-p)
Quinn Angstrom
or, if you subtract f(-p) from both sides:
Quinn Angstrom
f(p) - f(-p) = (0,0)
Quinn Angstrom
so. time to prove that!
Quinn Angstrom
because we have this mapping, we aren't just restricted to mapping points! we can also map lines
Quinn Angstrom

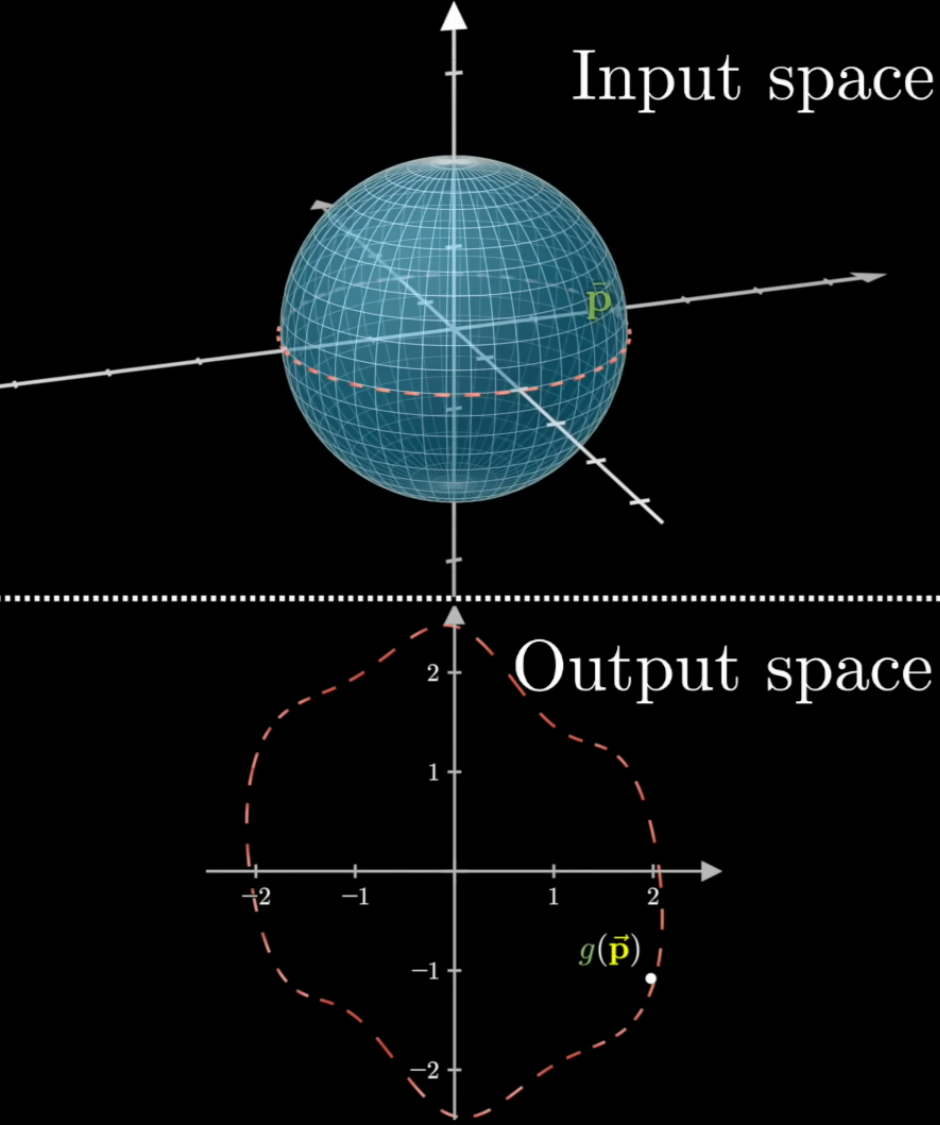

https://images.plurk.com/hYNi7iX98puw8yepLLQUq.png like this.
Quinn Angstrom
we've taken the path around the equator, and mapped it to some squiggly line in the mapped space
Quinn Angstrom
two things are guaranteed to be true about this specific line
Quinn Angstrom
1. it will form a closed loop.
Quinn Angstrom
because the start and end are in the same place.
BattroidBattery
oh okay I missed the part about assuming continuity and was getting bothered about nothing
Quinn Angstrom
ok hang on I need to stop and brain at this to make sure I understand this next part
Quinn Angstrom
oh okay I see! I explained this mapping wrong
Quinn Angstrom
it's not a mapping of f(p) that makes the squiggle here
Quinn Angstrom
it's a mapping of g(p), defined as:
Quinn Angstrom
g(p) = f(p) - f(-p)
Quinn Angstrom
so based on that, when you make it halfway around the loop
Quinn Angstrom
you'll end up at the antipode of p, or -p
Quinn Angstrom
so, on the equator, the starting point and the halfway point are opposites
Quinn Angstrom
and accordingly, the second half of the loop is the first half rotated 180 degrees
Quinn Angstrom
and mathswise, the opposite point is g(-p)
Quinn Angstrom
g(-p) = f(-p) - f(p)
Quinn Angstrom
in other words, g(-p) = -g(p)
Quinn Angstrom
anyway
Quinn Angstrom
to prove that we have a p where f(p) = f(-p) is to say that there exists a point p such that g(p) = (0,0)
Quinn Angstrom
(0,0) = the origin
Quinn Angstrom
I'm repeating a lot of stuff because this fucks with my head
Quinn Angstrom
anyway if you play with the restrictions of a loop made by two squiggles rotated 180 degrees from each other, you'll quickly find that you can't have the origin be outside of the loop
Quinn Angstrom
the second half will always wrap around and contain the origin. it is always inside the loop, unless the loop passes through the origin directly - in which point, hey, we found the point where g(p) = (0,0) already, so we're done
Quinn Angstrom
but most of the time, origin is inside the loop
Quinn Angstrom
https://images.plurk.com/3Z3IIHP63XVkR9HRz2h7bb.png what we do next is this
Quinn Angstrom
start pulling the loop up the sphere, towards the north pole
Quinn Angstrom
as you do, it loses the convenient symmetry of the original loop
Quinn Angstrom
but it contracts
Quinn Angstrom
and when it reaches the north pole, the loop will collapse into a point Somewhere
Quinn Angstrom
but because the origin is known to be inside the loop
Quinn Angstrom

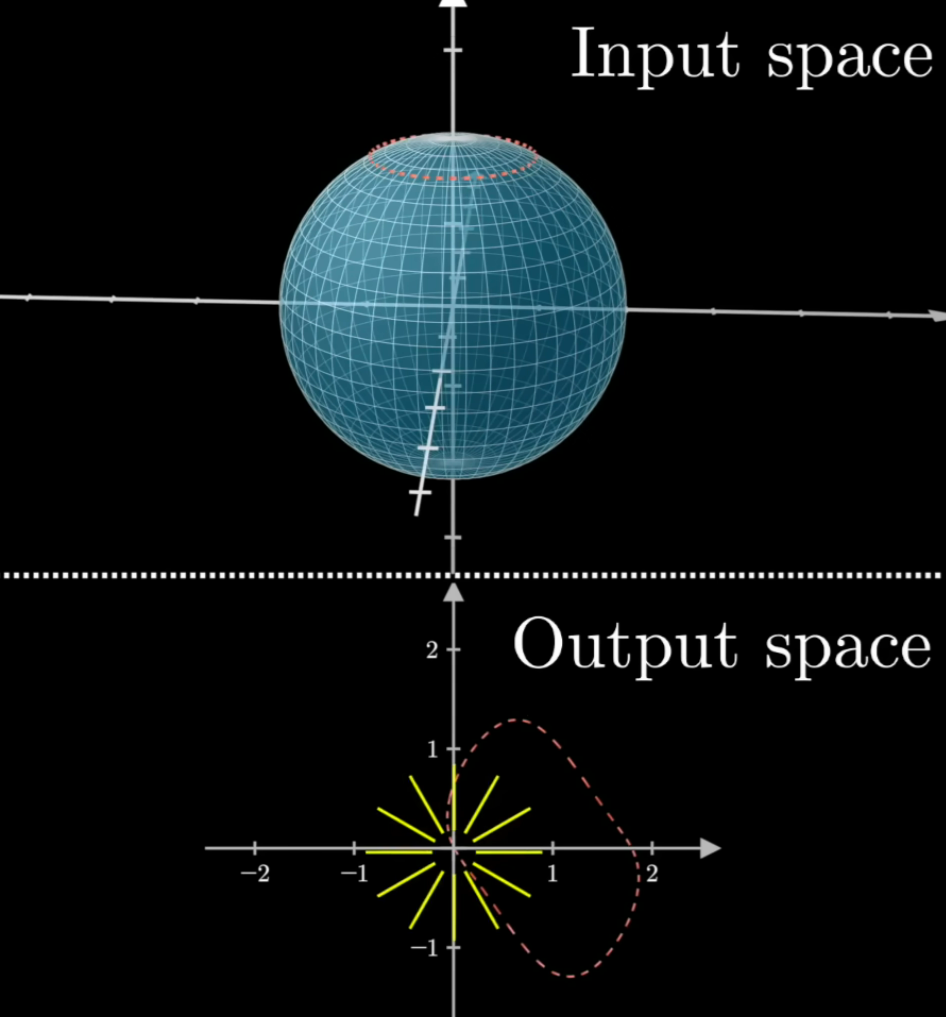

https://images.plurk.com/3D9xSMDisVhcu9hc55wKti.png at some point, the loop has to cross over the origin to collapse around the north pole
Quinn Angstrom
and when it does, that's a point where g(p) = (0,0)
Quinn Angstrom
in other words, a point where f(p) - f(-p) = (0,0)
Quinn Angstrom
in other words, a point where f(p) = f(-p)
Quinn Angstrom
because the loop has to start containing the origin and has to end as a single point somewhere
Quinn Angstrom
and the translation between those two shapes will always cross over the origin at some point
Quinn Angstrom
OKAY TIME TO MAKE THIS EVEN MORE MATH
Quinn Angstrom
first, a thing you're going to have to Just Trust Me On, about the above proof
Quinn Angstrom
the general statement of the above is
Quinn Angstrom
"in any continuous mapping of a sphere to a 2D plane, there will exist antipodal points on the sphere that map to the same point on the plane"
Quinn Angstrom
and the Just Trust Me part is:
Quinn Angstrom
this proof extends into higher dimensions
Quinn Angstrom
in any continuous mapping of a 4D hypersphere into a 3D space, there will exist antipodal points on the hypersphere that map to the same point on the plane
Quinn Angstrom
still true in 5D, 6D, etc
Quinn Angstrom
we will hold it in our hearts that this is the case
Quinn Angstrom
anyway throw all this bullshit about spheres out
Quinn Angstrom
let's talk about a completely different problem
Quinn Angstrom
the Stolen Necklace Problem
Quinn Angstrom
the problem suggests that Alice and Bob have stolen a necklace containing a variety of jewels
Quinn Angstrom
and that each type of jewel occurs an even number of times
Quinn Angstrom
they want to cut up the necklace such that Alice and Bob can both take segments of it in such a way that each of them has the same number of each type of jewel
Quinn Angstrom
so, if there are 8 sapphires, 4 emeralds, and 6 diamonds, each thief must end up with 4 sapphires, 2 emeralds, and 3 diamonds
Quinn Angstrom
the claim is that, if there are N types of jewels on the necklace
Quinn Angstrom
then it can be divided into a satisfactory set of segments in N cuts.
Quinn Angstrom
this is hard to verify experimentally, let alone prove rigorously
Quinn Angstrom
but let's get weird with it
Quinn Angstrom

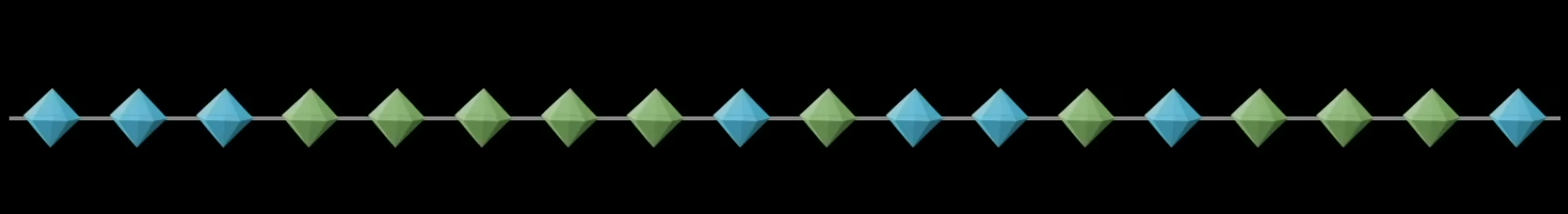

https://images.plurk.com/4tfjrbZA0rvMNR9Dhclx0x.png start with a simplest case - only two jewel colors
Quinn Angstrom
there are 8 sapphires and 10 emeralds
Quinn Angstrom
so 2 cuts have to divide it so that each person can take home 4 sapphires and 5 emeralds
Quinn Angstrom
https://images.plurk.com/2GjtDiK4buh78KZouCSdGy.png in this case, you can do it like this
Quinn Angstrom
but this is too discrete for what we're doing with it
Quinn Angstrom
so let's generalize
Quinn Angstrom

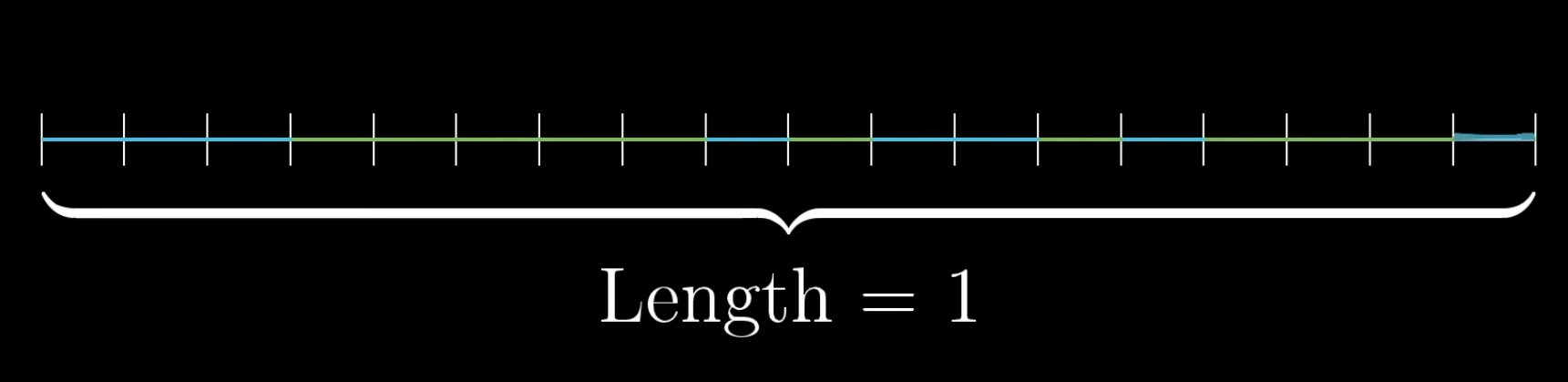

https://images.plurk.com/4ZkDCHsrA5lTwlCMJwHckB.png a line of length 1
Quinn Angstrom
divided into 18 segments, of length 1/18
Quinn Angstrom
each segment colored blue or green
Quinn Angstrom
now the problem is to find two cuts anywhere on the line that result in alice and bob getting the same total length of blue and green
Quinn Angstrom
there were 18 segments initially, so 8/18ths of the line is blue and 10/18ths of the line is green
Quinn Angstrom
and each side must have 4/18ths blue and 5/18ths green, adding up to their 1/2 of the original line
Quinn Angstrom
before advancing further: despite technically being allowed to place the cuts in mid-jewel now, this is still the same problem.
Quinn Angstrom
https://images.plurk.com/3w54bRayu7GA4SADEnxPsS.png if you did something like this
Quinn Angstrom
then you gave, say, 30% of an emerald to alice and 70% of it to bob
Quinn Angstrom
then the thing is that alice and bob both need a total of 5 emeralds worth of green line
Quinn Angstrom
so somewhere else, you need to give alice 70% of an emerald and give bob 30% of an emerald
Quinn Angstrom
so, the cuts that are in mid-jewel will always be in pairs of the same color, so you can just slide them over and get the same result without cutting a jewel
Quinn Angstrom
so if we can solve this problem, we can solve the discrete version
Quinn Angstrom
now
Quinn Angstrom
let's rethink how we're defining 'cutting'
Quinn Angstrom
we've been thinking of it as picking two points on the line
Quinn Angstrom

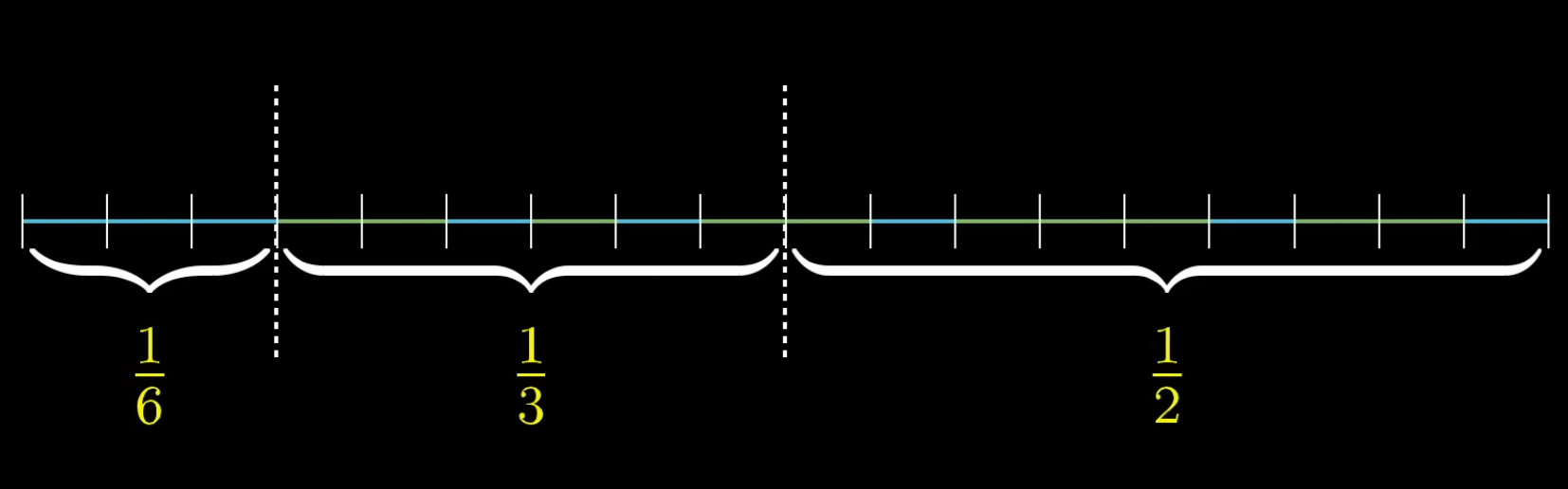

https://images.plurk.com/5nkBqcTkeKCyAnzYB9GIPZ.png but let's think of it like this instead
Quinn Angstrom
the division is defined as three numbers, a, b, and c, such that a+b+c = 1
Quinn Angstrom
then, each piece must be given to alice or bob, which will call negative and positive
Quinn Angstrom
so.
Quinn Angstrom
what's a sphere.
Quinn Angstrom
mathematically the unit sphere is all points (x,y,z) such that x^2 + y^2 + z^2 = 1
Quinn Angstrom
so if you say x^2 = a, y^2 = b, z^2 = c
Quinn Angstrom
then a+b+c = 1
Quinn Angstrom
in other words, our line division definition above can be mapped to the surface of a sphere.
Quinn Angstrom
for each, you take the square root, so
x = root(1/6)
y = root(1/3)
z = root(1/2)
Quinn Angstrom
and square it to get to your sum of one
Quinn Angstrom
and just as each segment can be given to alice or bob
Quinn Angstrom
x, y, and z can each be negative or positive
Quinn Angstrom
because a^2 and (-a)^2 are equivalent
Quinn Angstrom
every possible division of the necklace into three segments is represented by a point on the sphere
Quinn Angstrom
so, what would it mean for a division to be even?
Quinn Angstrom
it would mean that if you swap all three pieces, you get the same value
Quinn Angstrom
so, (a,b,c) = (-a,-b,-c)
Quinn Angstrom
two antipodal points with the same value
Quinn Angstrom
does such a pair of points exist on the sphere?
Quinn Angstrom
yeah.
Quinn Angstrom
we proved it back in the first half.
Quinn Angstrom
by the same reasoning, there must be a division of the necklace into three segments such that each side of the division is equal in value
Quinn Angstrom
and because the borsuk-ulam theorem applies to higher dimensions, this is still true as we add more colors of jewels to the necklace - each new color is just another dimension of the sphere
Quinn Angstrom
these two problems, one about sphere topology and one about necklace grifting,
Quinn Angstrom
are the same fucking problem
